CFM56-3 A Two Spool Unmixed Flow Turbofan
Discussed in "Propulsion&Power"

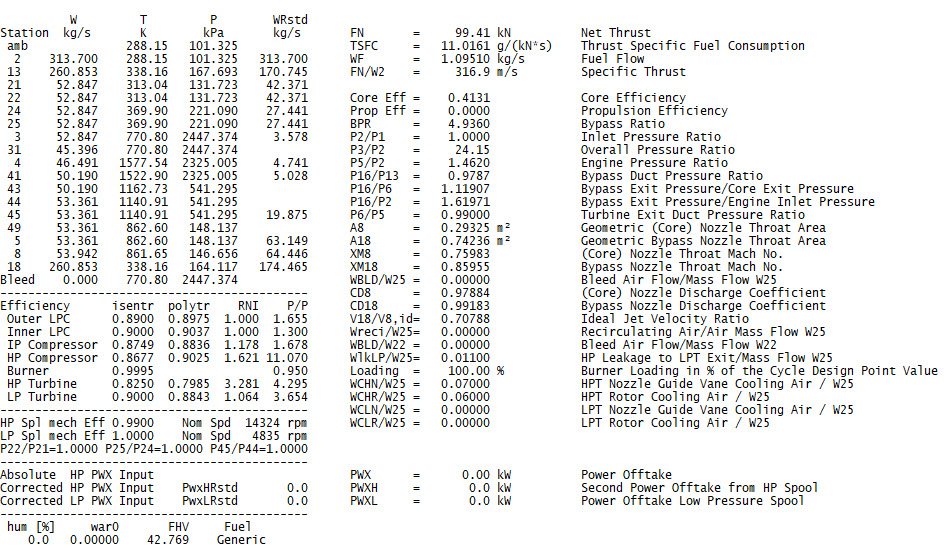

The cycle data are those published in "Propulsion and Power".

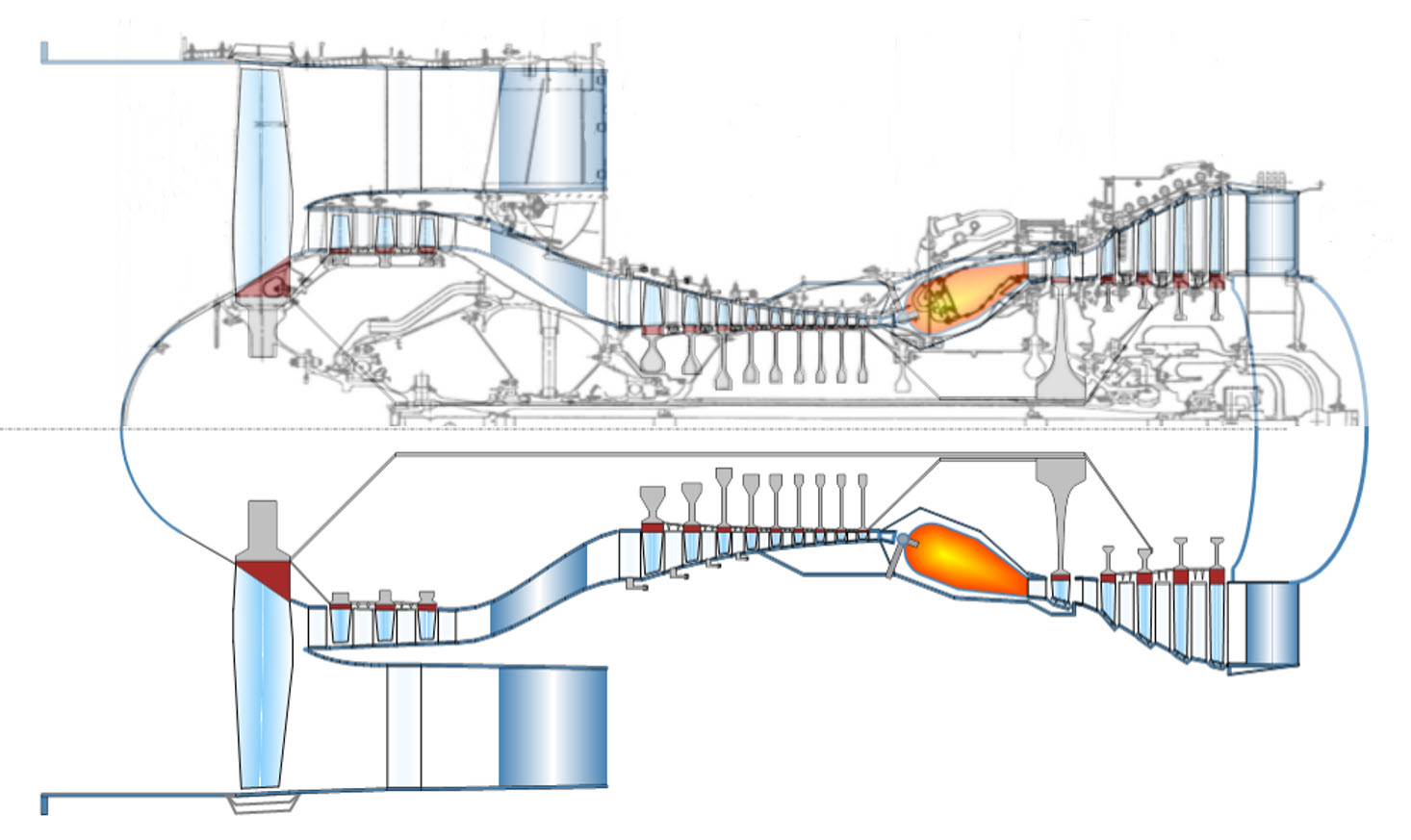

The engine figure is from


Discussed in "Propulsion&Power"



The cycle data are those published in "Propulsion and Power".
The engine figure is from
